463L Pallet
Item # HCU-6/E Part # 1670-00-820-4896 CT
Length: 108”
Width: 88”
Height: 2.25”
Capacity: 10,000lb
Accessories
Pallet Cover (Type I - 112L x 90W x 96H ) Part # NSN 3990-00-930-1480 Box of 10
Pallet Coupler (Square) Part# NSN 1670-01-061-0990 New Tie down / Tensioner Part #
Pallet Coupler (Rectangle) Part# NSN 1670-01-487-8743 CT
Nets

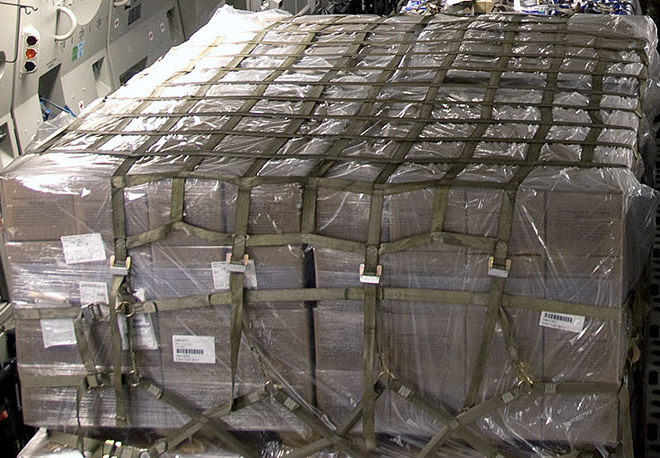

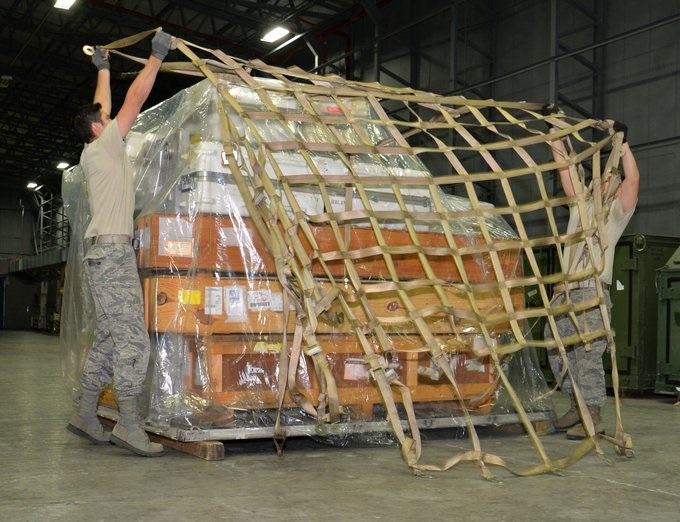

1 top and 2 side nets are needed to surround and secure the cargo for each pallet.
Pallet Top Net Item # HCU-15/C Part# NSN 1670-00-969-4103 - 10,000lb capacity
Pallet Side Net Item # HCU-7/E Part# NSN 1670-00-996-2780 - 10,000lb capacity
Tie-Downs and Tensioners
20’ Nylon Strap Tie Down (Rachet type) Item # CGU-1/B NSN 1670-00-725-1437 - 5,000lb capacity
108” Chain (Type 1 MIL-C-6458) Item # CGU-4E Part# NSN 1670-00-516-8405 - 10,000lb capacity
Chain Tensioner (Type 1 Hook up Style B MIL-DTL-25959) NSN 1670-00-212-1149 - 10,000lb capacity

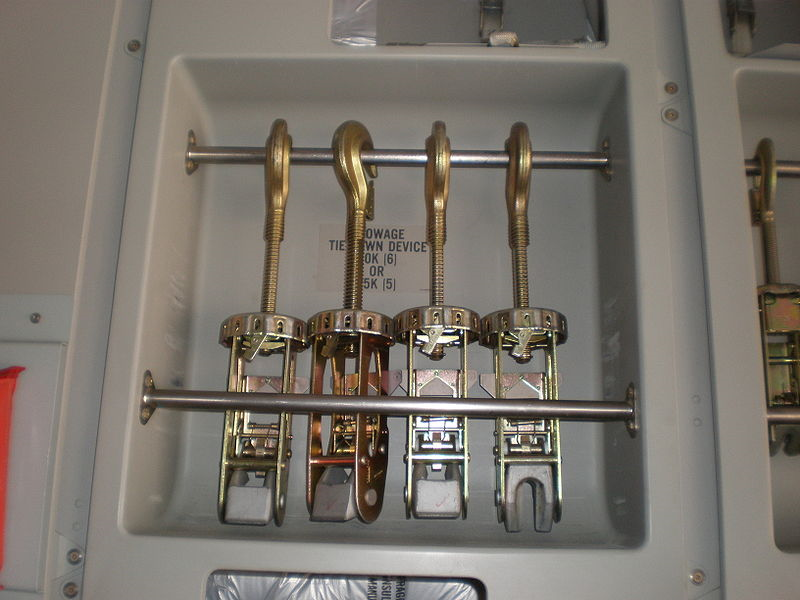

Tie Down Device (Hook down) Item # MB-1 Part # NSN 1670-01-580-3069 - 10,000lb capacity
Tie Down Device (New type) Item # CGU-8/A Part # NSN:1670-01-599-2776 - 10,000lb capacity
